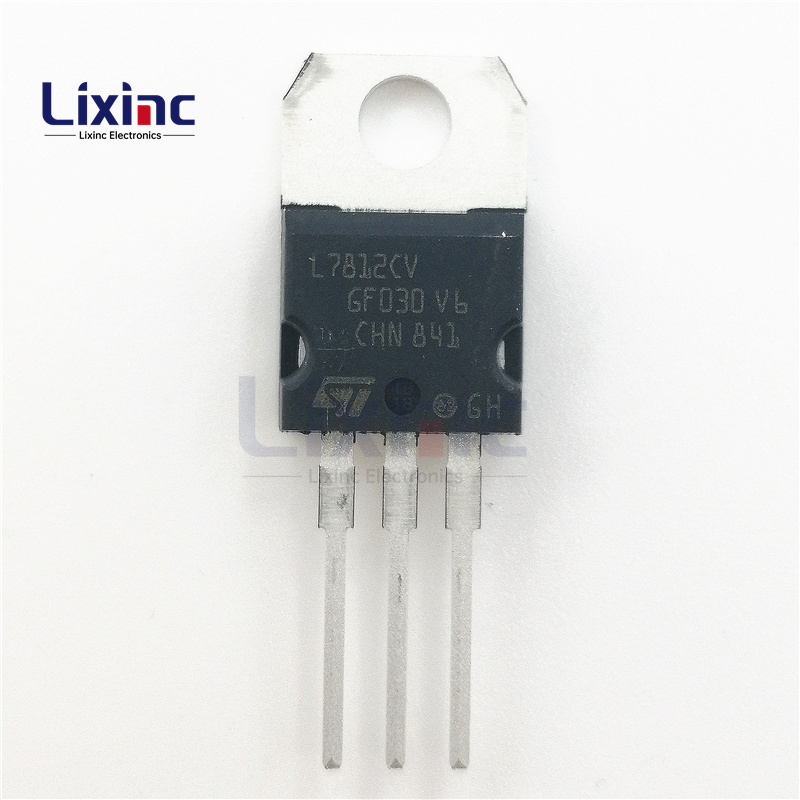

L7812CV

L7812CV
Enlarge

For Reference Only

Part Number L7812CV
LIXINC Part # L7812CV
Manufacturer STMicroelectronics
Category Integrated CircuitsPMIC - Voltage Regulators - Linear
Description IC REG LINEAR 12V 1.5A TO220AB
Lifecycle Active
RoHS No RoHS Information
EDA/CAD Models L7812CV PCB Footprint and Symbol
Warehouses USA, Europe, China, Hong Kong SAR
Estimated Delivery Jan 25 - Jan 29 2026(Choose Expedited Shipping)
Warranty Up to 1 year [Limited-Warranty]*
Payment Wire Transfer, UnionPay, PayPal, Credit Card, Visa, MasterCard, AmericanExpress, Discover, WesternUnion, MoneyGram
Shipping DHL, UPS, FedEx, TNT, EMS, & More Express Delivery

L7812CV Specifications

Part Number:L7812CV
Brand:STMicroelectronics
Lifecycle:Active
RoHS:Lead free / RoHS Compliant
Category:Integrated Circuits
Subcategory:PMIC - Voltage Regulators - Linear
Manufacturer:STMicroelectronics
Series:-
Package:Tube
Part Status:Active
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):35V
Voltage - Output (Min/Fixed):12V
Voltage - Output (Max):-
Voltage Dropout (Max):2V @ 1A (Typ)
Current - Output:1.5A
Current - Quiescent (Iq):8 mA
Current - Supply (Max):-
PSRR:55dB (120Hz)
Control Features:-
Protection Features:Over Temperature, Short Circuit
Operating Temperature:0°C ~ 125°C
Mounting Type:Through Hole
Package / Case:TO-220-3
Supplier Device Package:TO-220AB
